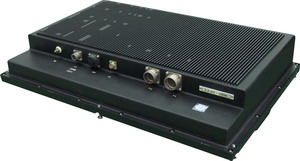

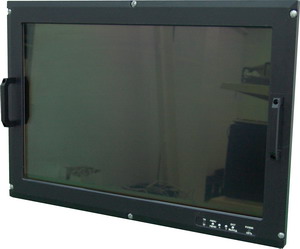

M-3S.ZhK24
 |
| Screen Size, inch/cm |
24/61 |
| Brightness, cd/m2, not less than |
250 |
| Contrast, not less than |
400:1 |
| Resolution, pixel, not less than |
1920x1200 |
| Viewing Angles, °, not less than: |
- horizontal |
±85 |
| - vertical |
±85 |
| Supply Voltage, V/Hz |
220/50 |
| Power Consumption, W, not more than |
-at standard climatic conditions |
100 |
| -when temperature is below 0°С |
200 |
| Interfaces |
VGA DVI-D |
| Ambient Temperature, °С |
- operating |
-10…+50 |
| - limiting |
-40…+70 |
| Operating Conditions as per GOST RV 20.39.304-98 |
groups: 1.3 |
| Weight, kg, not more than |
15 |
| Dimensions, WxHxD, mm |
597x414x102,5 |
| Additional Functions |
- |
| Installation |
flange-mounted |
| Development Stage |
Letter О1 Included into the Coordination Target Program 'Integratsiya-SVT-2015' |
|
|
|
|
